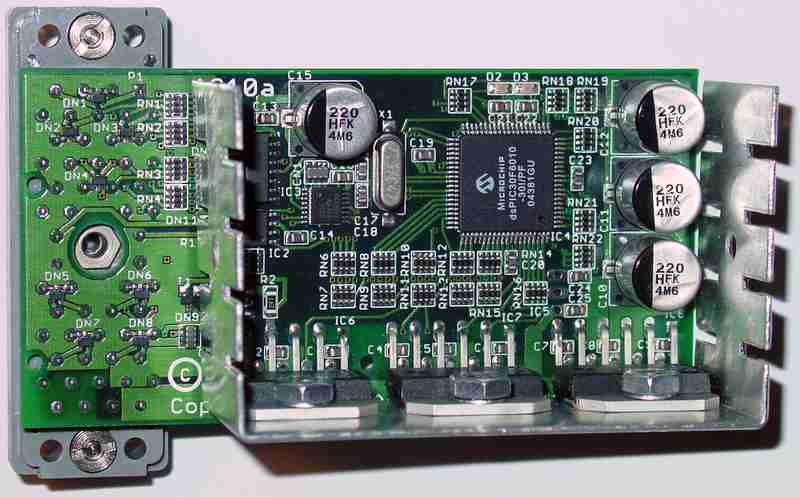

The AC10 is a programmable controller capable of 30MIPS with a corresponding interrupt latency of 167ns. Parallel, RS232, CAN Bus and quadrature encoder interfaces are available. Three (3) H-bridge amplifiers each provide up to 3A current at a maximum of 50V. All connections are available on a single 56pin ELCO/EDAC 516 Series connector.

AC10 features:

• Based on Michrochip's dsPIC30F6010 capable of 30MIPS with a corresponding interrupt latency of 167ns

• 3 H-bridge amplifiers capable of driving 3A continuously, 6A peak up to 55V

• Quadruple differential line receiver that meets or exceeds EIA-422 and other standards

• RS232 transceiver with integrated ESD protection

• High speed CAN transceiver that supports speeds up to 1MB/s

• One reliable UL recognized 56 pin connector has gold plated contacts with a current rating of 8.5A each

• Small size

• Test and demo software with C source code

Extensive application development support is available by RenaiSys LLC (www.renaisys.com) at their regular rates and conditions. AC10 controllers have been used as motion-controllers with DC or BLDC motors as well as stepper motors. In addition, they have been used for controlling fluorescent, LEDs and incandescent lighting systems. Rotary and linear quadrature encoders as well as hall sensors, limit switches and analog potentiometers have been used as feedback devices to the AC10.

Limited documentation is available from our website. With a purchase, schematics, source code, warranties and support is available. Please call us with any question, comment, or suggestion.
